Setup a multi-node elasticsearch cluster

Published:

For this walk-through I am using 3 Linux Containers, each having latest Ubuntu 24.04 image. You can use any OS and Version combination listed in Elastic Support Matrix.

  NAME    STATE          IPV4
elastic0RUNNING10.250.252.252 (eth0)
elastic1RUNNING10.250.252.236 (eth0)
elastic2RUNNING10.250.252.156 (eth0)

Installing Elasticsearch

Grab the latest release of Elasticsearch from https://www.elastic.co/downloads/elasticsearch.

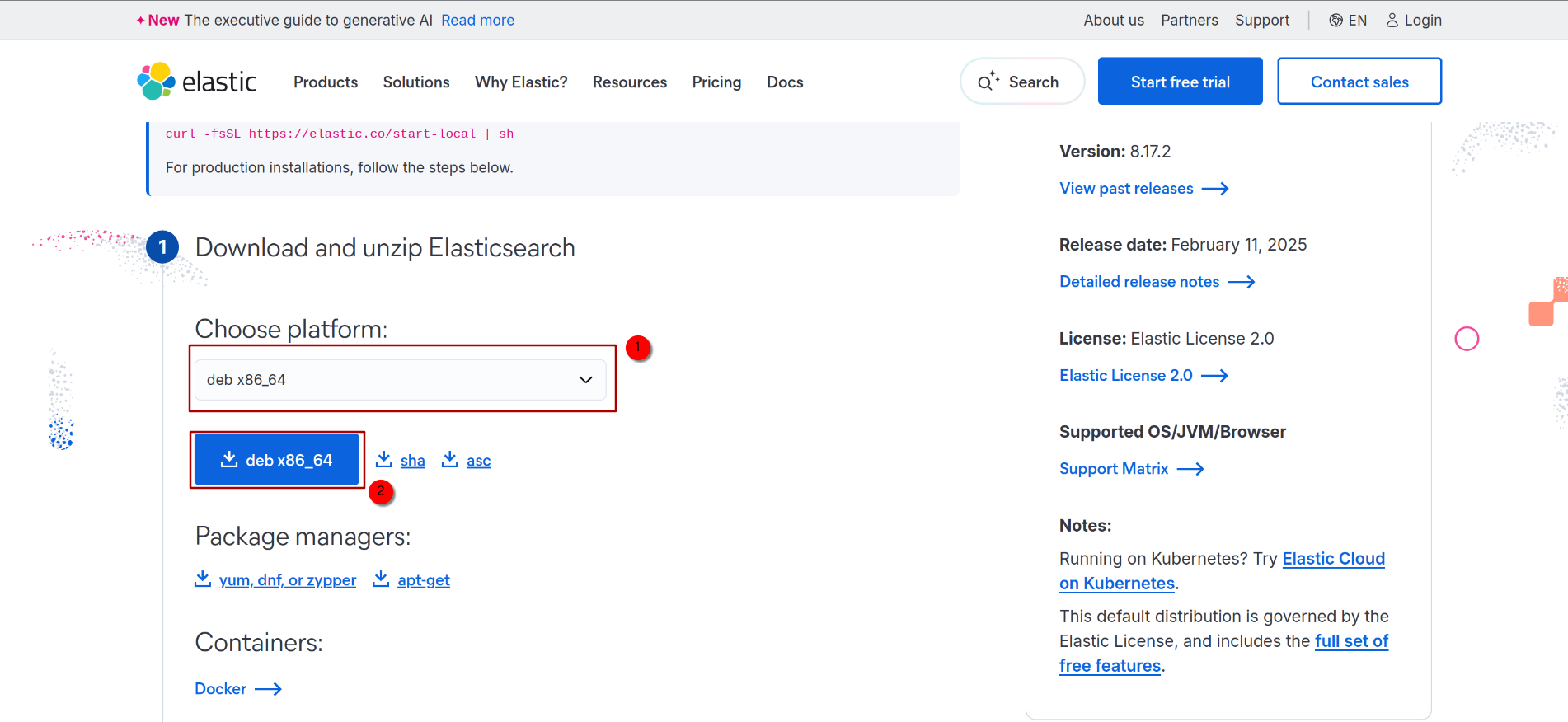

If you are also on some Debian based distribution, then do the following: Select 1. deb x86_64 and 2. Click on the download button.

To install the file run:

Terminal window
dpkg -i elasticsearch-8.17.2-amd64.deb

Replace the filename elasticsearch-8.17.2-amd64.deb with the package you downloaded.

Creating TLS Certificates

We will be creating the TLS certificates for all nodes in elastic0 instance. But it is advisable to create the private keys and CSR in individual hosts and sign that with CA.

Creating CA Certificate

Terminal window
# Generate CA Certificate and Private Key
/usr/share/elasticsearch/bin/elasticsearch-certutil ca --silent --pem -out /etc/elasticsearch/certs/ca.zip


# Unpack
unzip /etc/elasticsearch/certs/ca.zip -d /etc/elasticsearch/certs

Creating Node Certificates

Create a file named instances.yml in /etc/elasticsearch/certs.

/etc/elasticsearch/certs
instances:
  - name: elastic0
    dns:
      - elastic0
    ip:
      - 10.250.252.252


  - name: elastic1
    dns:
      - elastic1
    ip:
      - 10.250.252.236


  - name: elastic2
    dns:
      - elastic2
    ip:
      - 10.250.252.156

Generate Certificates

Terminal window
# Generate Certificate and Key bundle
/usr/share/elasticsearch/bin/elasticsearch-certutil cert --silent --pem -out /etc/elasticsearch/certs/certs.zip --in /etc/elasticsearch/certs/instances.yml -ca-cert /etc/elasticsearch/certs/ca/ca.crt --ca-key /etc/elasticsearch/certs/ca/ca.key


# Unpack
unzip /etc/elasticsearch/certs/certs.zip -d /etc/elasticsearch/certs

Now move the CA and certificate/key to their respective hosts in the same location.

Elasticsearch Configuration

I’m going to use hostname (i.e. - elastic0, elastic1, elastic2) while referring to other nodes in the configuration, but you can use IP as well. You must use IP if your environment does not have a internal dns server or the hostnames are not added in /etc/hosts.

Create the following configuration in elastic0 node /etc/elasticsearch/elasticsearch.yml.

/etc/elasticsearch/elasticsearch.yml
node.name: elastic0
cluster.name: elasticdev
cluster.initial_master_nodes:
  - elastic0
  - elastic1
  - elastic2
discovery.seed_hosts:
  - elastic1
  - elastic2


# bootstrap.memory_lock: true


xpack.security.enabled: true
xpack.security.http.ssl.enabled: true
xpack.security.http.ssl.key: /etc/elasticsearch/certs/elastic0/elastic0.key
xpack.security.http.ssl.certificate: /etc/elasticsearch/certs/elastic0/elastic0.crt
xpack.security.http.ssl.certificate_authorities: /etc/elasticsearch/certs/ca/ca.crt
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.key: /etc/elasticsearch/certs/elastic0/elastic0.key
xpack.security.transport.ssl.certificate: /etc/elasticsearch/certs/elastic0/elastic0.crt
xpack.security.transport.ssl.certificate_authorities: /etc/elasticsearch/certs/ca/ca.crt
xpack.security.transport.ssl.verification_mode: certificate
xpack.ml.use_auto_machine_memory_percent: true


path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
network.host: 0.0.0.0
http.host: 0.0.0.0
transport.host: 0.0.0.0

Create the following configuration in elastic1 node /etc/elasticsearch/elasticsearch.yml.

/etc/elasticsearch/elasticsearch.yml
node.name: elastic1
cluster.name: elasticdev
cluster.initial_master_nodes:
  - elastic0
  - elastic1
  - elastic2
discovery.seed_hosts:
  - elastic0
  - elastic2


# bootstrap.memory_lock: true


xpack.security.enabled: true
xpack.security.http.ssl.enabled: true
xpack.security.http.ssl.key: /etc/elasticsearch/certs/elastic1/elastic1.key
xpack.security.http.ssl.certificate: /etc/elasticsearch/certs/elastic1/elastic1.crt
xpack.security.http.ssl.certificate_authorities: /etc/elasticsearch/certs/ca/ca.crt
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.key: /etc/elasticsearch/certs/elastic1/elastic1.key
xpack.security.transport.ssl.certificate: /etc/elasticsearch/certs/elastic1/elastic1.crt
xpack.security.transport.ssl.certificate_authorities: /etc/elasticsearch/certs/ca/ca.crt
xpack.security.transport.ssl.verification_mode: certificate
xpack.ml.use_auto_machine_memory_percent: true


path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
network.host: 0.0.0.0
http.host: 0.0.0.0
transport.host: 0.0.0.0

Create the following configuration in elastic2 node /etc/elasticsearch/elasticsearch.yml.

/etc/elasticsearch/elasticsearch.yml
node.name: elastic2
cluster.name: elasticdev
cluster.initial_master_nodes:
  - elastic0
  - elastic1
  - elastic2
discovery.seed_hosts:
  - elastic0
  - elastic1


# bootstrap.memory_lock: true


xpack.security.enabled: true
xpack.security.http.ssl.enabled: true
xpack.security.http.ssl.key: /etc/elasticsearch/certs/elastic2/elastic2.key
xpack.security.http.ssl.certificate: /etc/elasticsearch/certs/elastic2/elastic2.crt
xpack.security.http.ssl.certificate_authorities: /etc/elasticsearch/certs/ca/ca.crt
xpack.security.transport.ssl.enabled: true
xpack.security.transport.ssl.key: /etc/elasticsearch/certs/elastic2/elastic2.key
xpack.security.transport.ssl.certificate: /etc/elasticsearch/certs/elastic2/elastic2.crt
xpack.security.transport.ssl.certificate_authorities: /etc/elasticsearch/certs/ca/ca.crt
xpack.security.transport.ssl.verification_mode: certificate
xpack.ml.use_auto_machine_memory_percent: true


path.data: /var/lib/elasticsearch
path.logs: /var/log/elasticsearch
network.host: 0.0.0.0
http.host: 0.0.0.0
transport.host: 0.0.0.0

Configuring JVM Heap Size

Create a drop-in options file in /etc/elasticsearch/jvm.options.d/01-memlimit.options with following contents. Set the heap size to approximate half of physical memory. (e.g. - 512m, 1g, 10g). I’m using a low limit as physical memory on my computer is low.

-Xms512m
-Xmx512m

Start the Service

Now start the elasticsearch service in all three nodes in sequential order. i.e. - elastic0 > elastic1 > elastic2

Terminal window
systemctl start elasticsearch.service
systemctl enable elasticsearch.service

You can check the logs in /var/log/elasticsearch/elasticdev.log.

Reset elastic account password

Now log into one of the servers and run the following command:

Terminal window
/usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic --url https://elastic0:9200

It will ask for confirmation, just press Y and press Enter. Now you will have new password printed into your console.

Now you will be able to access Elasticsearch over API.

References

  1. https://www.elastic.co/guide/en/elasticsearch/reference/current/certutil.html
  2. https://www.elastic.co/guide/en/elasticsearch/reference/current/reset-password.html
  3. https://www.cloudflare.com/learning/access-management/what-is-mutual-tls/
  4. https://www.baeldung.com/openssl-self-signed-cert
